Our pneumatic relief valves allow air to escape in only one direction and reliably prevent air from entering. In this way, they protect internal components and meet the highest protection standards, such as IP65. They ensure stable pressure equalization in enclosures, pneumatic systems, or sensitive assemblies.

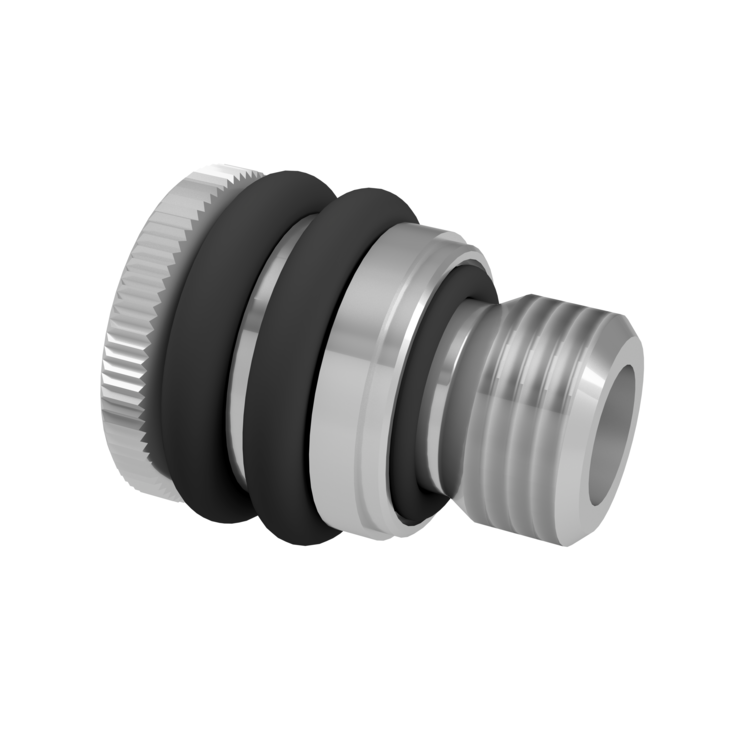

In the example shown, venting is achieved using a G1/4 vent valve equipped with several vent slots. Two O-rings provide reliable protection against the ingress of foreign substances.
The number of holes and O-rings depends on the pressure, flow rate, and permissible pressure drop across the valve. Lead-free aluminum was selected as the material and subsequently black anodized to ensure corrosion protection and durability. The hardness of the O-rings was set to 70 Shore to effectively protect the holes while maintaining the specified pressure drop
Customizable
- Flow rate: compatible with air flow rate, pressure, and system requirements
- Material: plastic, metal, or specialty materials, available in corrosion-resistant or food-safe versions
- Design: flexibly adapted to the installation situation and application
Applications
Ideal for pneumatic and control systems, electronics and enclosure protection, mechanical engineering, automotive engineering, and all applications that require reliable pressure equalization with maximum protection.
Your benefits
- Reliable venting based on the flow rate and the allowable pressure drop
- IP65 protection rating
- Sturdy and durable
- Flexible and customized
- Consulting, design, and prototype manufacturing included
With our valves, we offer customized solutions that perfectly combine functionality, protection, and efficiency.
