Compact. Standardized. Quickly replaceable.

CNOMO valves offer decisive advantages over conventional valves with threaded connections—especially when it comes to ease of installation, replaceability, and space savings.

What is a CNOMO valve?

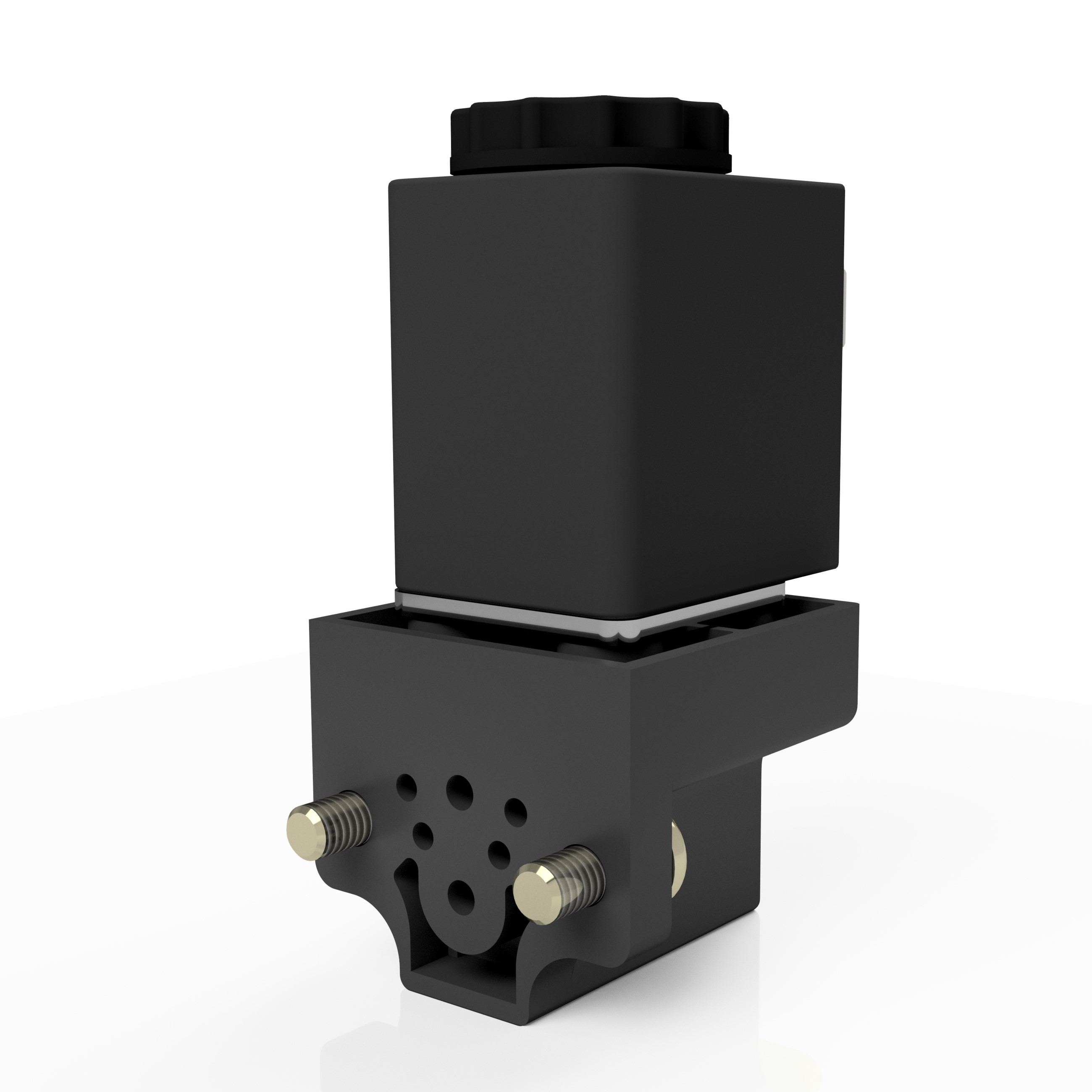

Unlike conventional valves with threaded connections, the connections on the CNOMO valve are precisely defined by ISO standard 15218. This standard specifies:

• the position and size of the pressure and consumer connections,
• as well as the hole pattern for attaching the control valve.

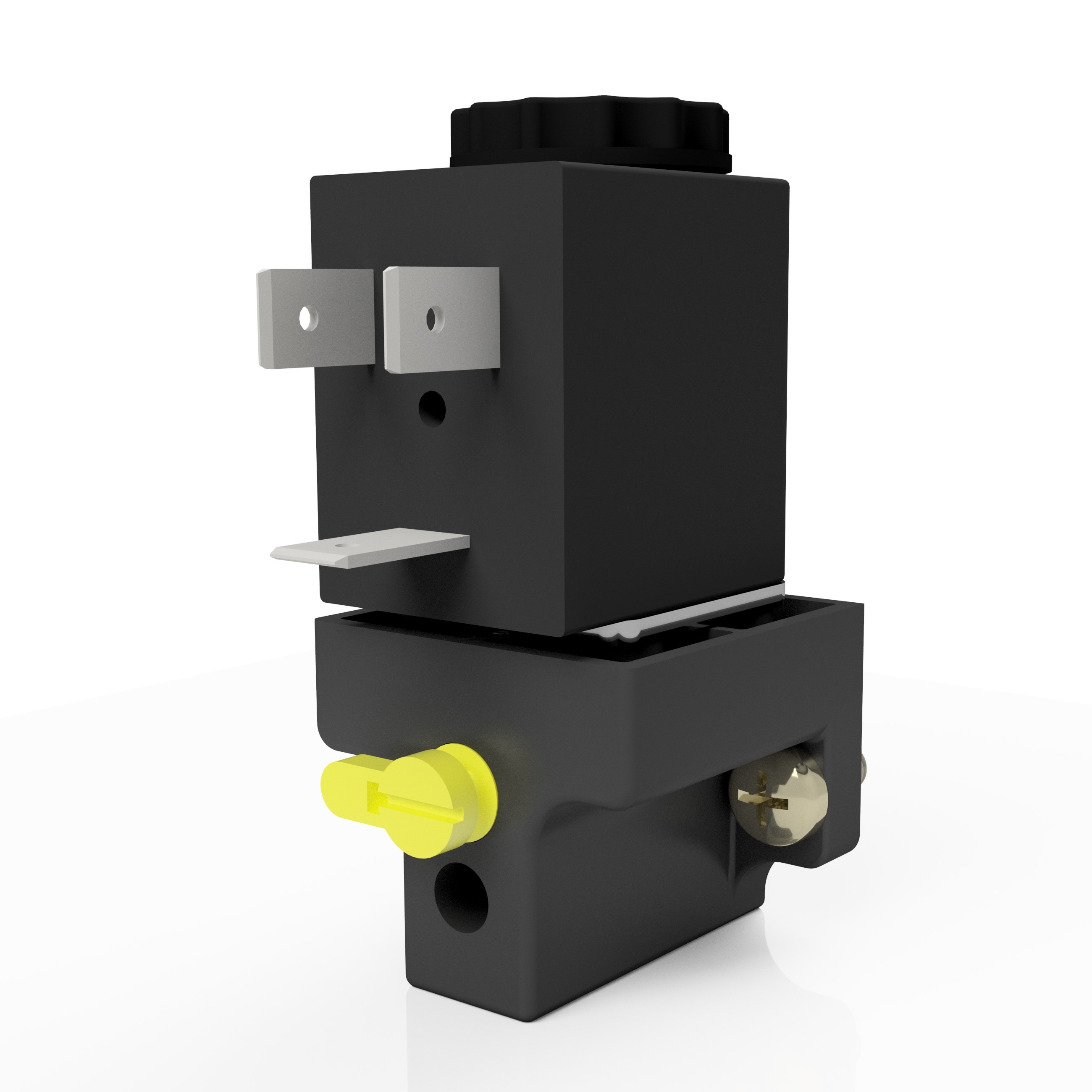

CNOMO valve size 30

The CNOMO size 30 is often used as a pilot valve for controlling actuators or directional control valves.

Typical variants:

• 2/2-way valves
• 3/2-way valves

With or without manual actuation.

Advantages of CNOMO valves

Thanks to their standardized interface, CNOMO valves offer a whole range of practical advantages:

• Easy installation: By flanging and fastening with only two screws.
• Perfect interchangeability: Every size 30 CNOMO valve can be replaced by another size 30 CNOMO valve – without any adjustments.
• Space-saving: Significantly more compact than threaded connections.

CNOMO valves from SFS-Fluid Systeme GmbH

At SFS-Fluid Systeme, we offer a wide range of different size 30 CNOMO valves – for a wide variety of applications and requirements. From standard systems with plastic bodies (POM) for working pressures up to 10 bar and offering the best price/performance ratio, to high-performance valves with guide rings and special seals that can withstand pressures of up to 40 bar for many millions of switching cycles.
