Compact efficiency for your pneumatic solution.

In the world of pneumatics, every detail counts—and every connection. With the KPV manifold, SFS-Fluid Systems offers a smart, space-saving solution for applications where individual control circuits must be safely shut off.

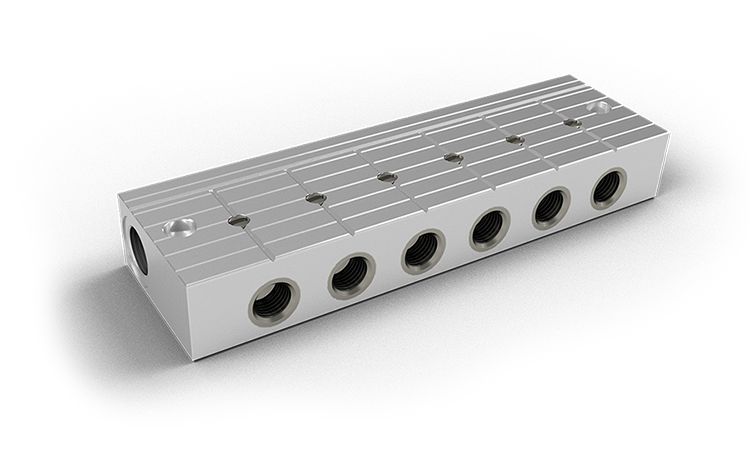

The KPV bar replaces up to ten individual ball valves with a single compact module with only one pressure inlet – for maximum efficiency in minimum space.

Function and design

The KPV distribution bar serves as a combined distribution and shut-off unit. Each outlet is equipped with an integrated ball valve that can be easily opened or closed with a screwdriver. The position of the ball valve is clearly visible through the slot in the spindle – for maximum control in the smallest of spaces.

Advantages

• Compactness: Up to 80% space savings compared to conventional solutions with multiple individual ball valves.
• Fewer connection points: Thanks to the block solution, the number of connections is drastically reduced – this minimizes the risk of leakage and increases operational safety.
• Highest quality – Made in Austria
• Housing: anodized aluminum
• Ball & spindle: chrome-plated brass
• Ball seals: PTFE
• O-rings: NBR
• Timesaving: The pre-assembled manifold allows for significantly faster installation compared to connecting multiple ball valves individually.

With the KPV manifold, SFS-Fluid Systeme offers a solution that not only impresses with its compact design, but also with its ease of use, reduced risk of leakage, and durable components.
