Miniature in pneumatics

General information

SFS-Fluid Systeme GmbH has been offering a wide range of compressed air products for various applications on the market for many years.
There is a general trend towards ever smaller and optimized products. This applies to both size and compressed air consumption.

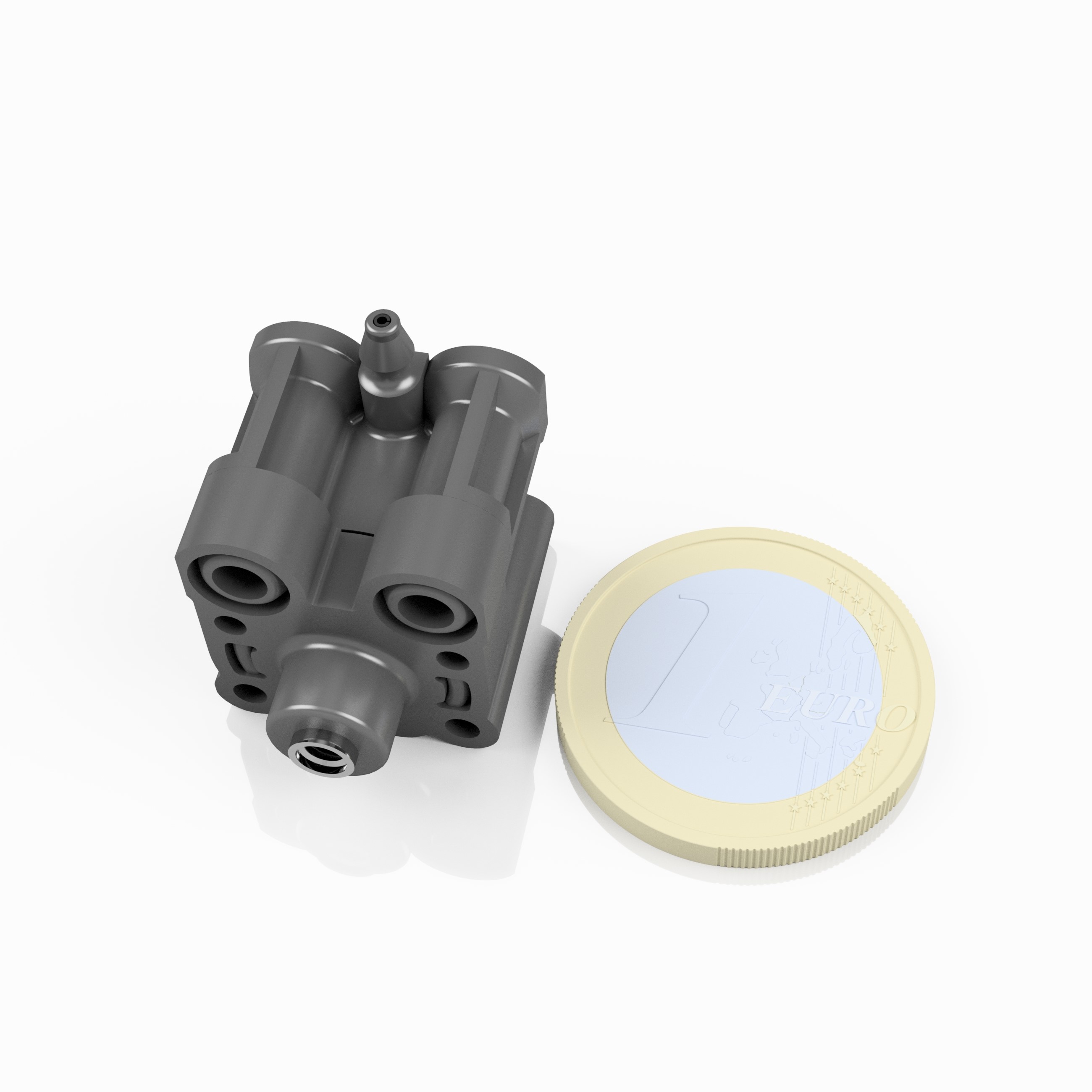

Mini cylinders/micro cylinders

In the case of mini cylinders, we are talking about piston diameters of 8mm - 12mm. These cylinders are often used in the automotive sector, e.g. for testing electrical wiring harnesses in cars or opening/closing the luggage hatch on buses.

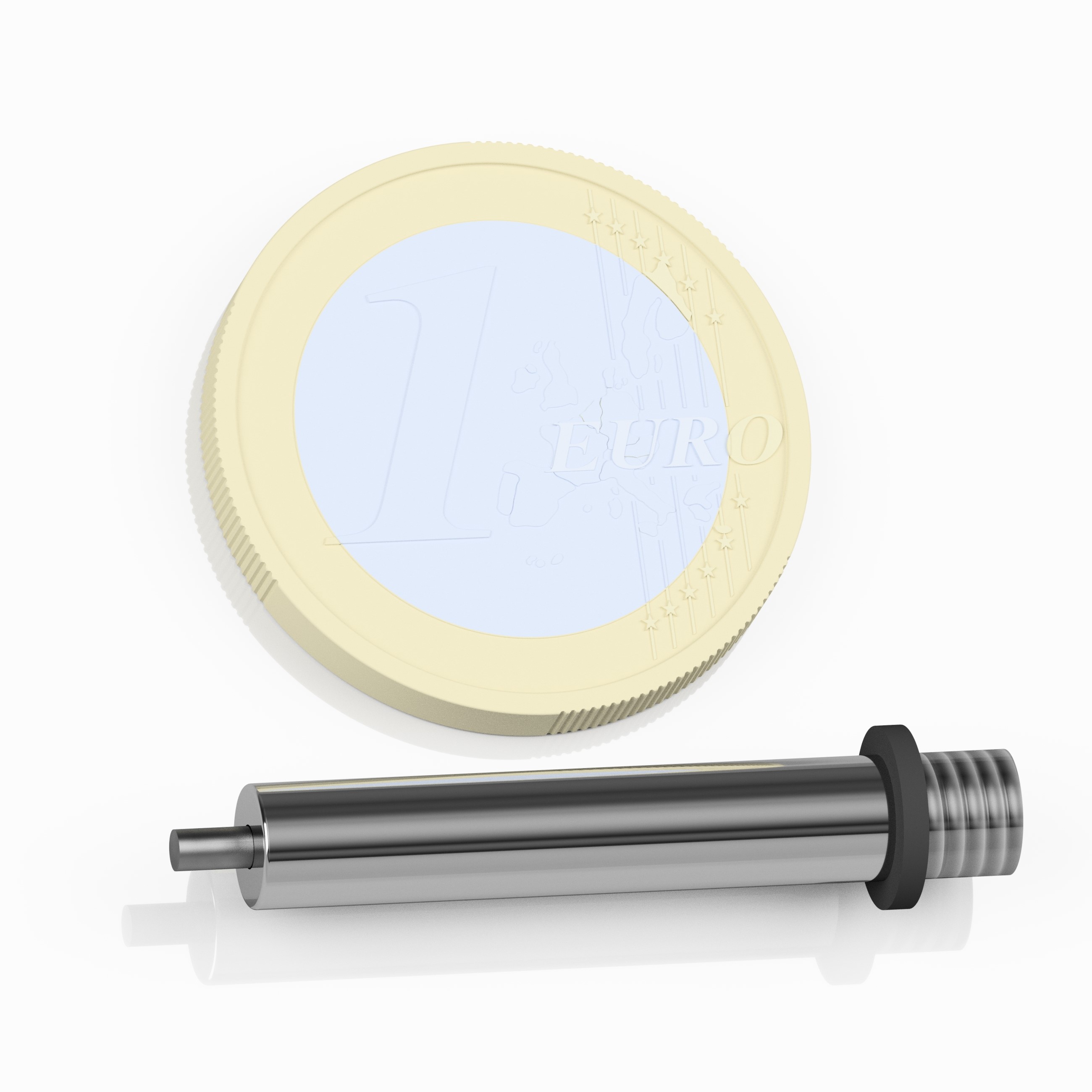

In the meantime, the range of cylinders is changing towards ever smaller dimensions and the so-called “micro cylinder” or “needle cylinder”, as the piston rod is only slightly thicker than a needle. We are talking here about piston diameters in the range of 3mm - 6mm. These micro cylinders, smaller than a paper clip, are used for a wide variety of control tasks and actuations with low forces.

MiniaturzylinderMiniaturzylinder

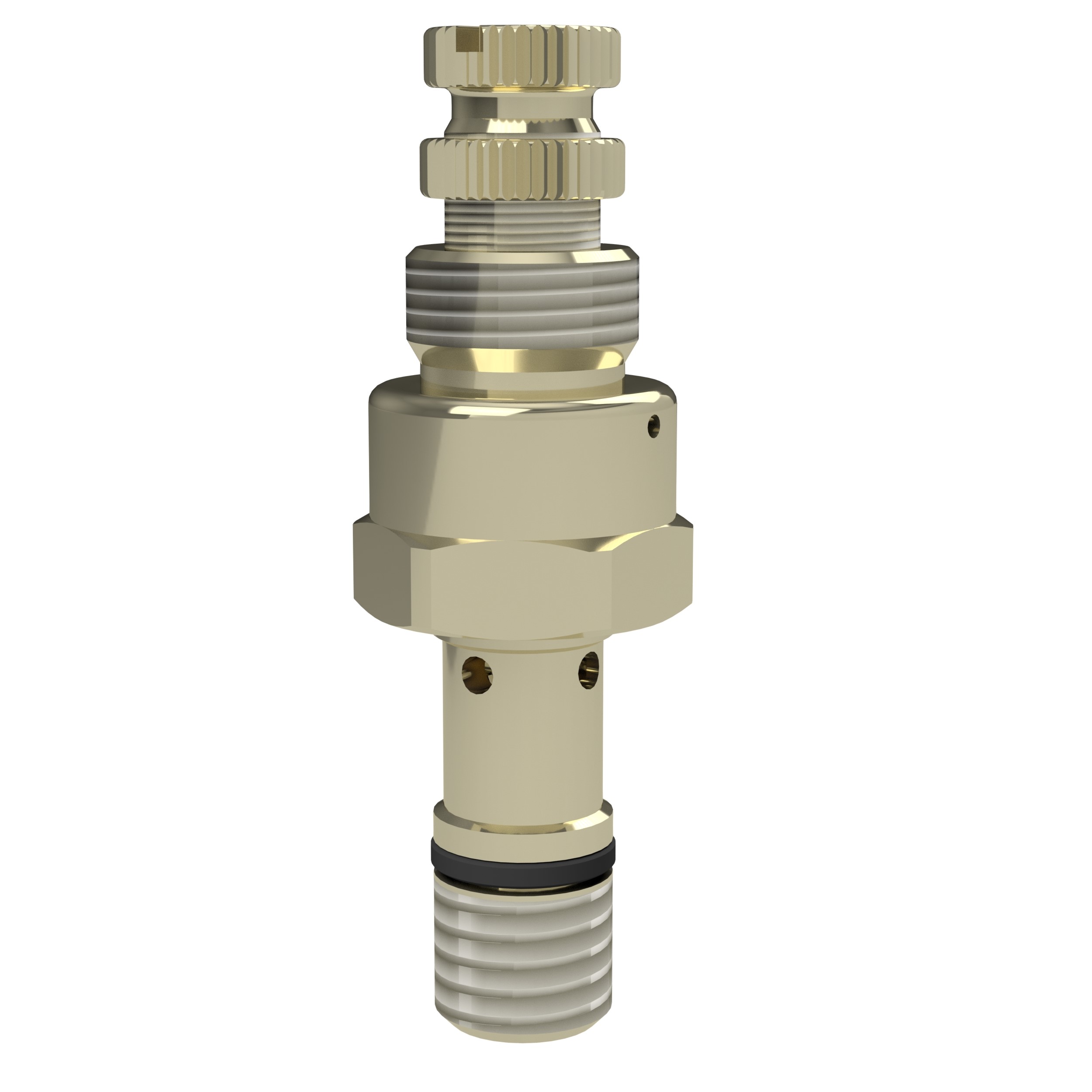

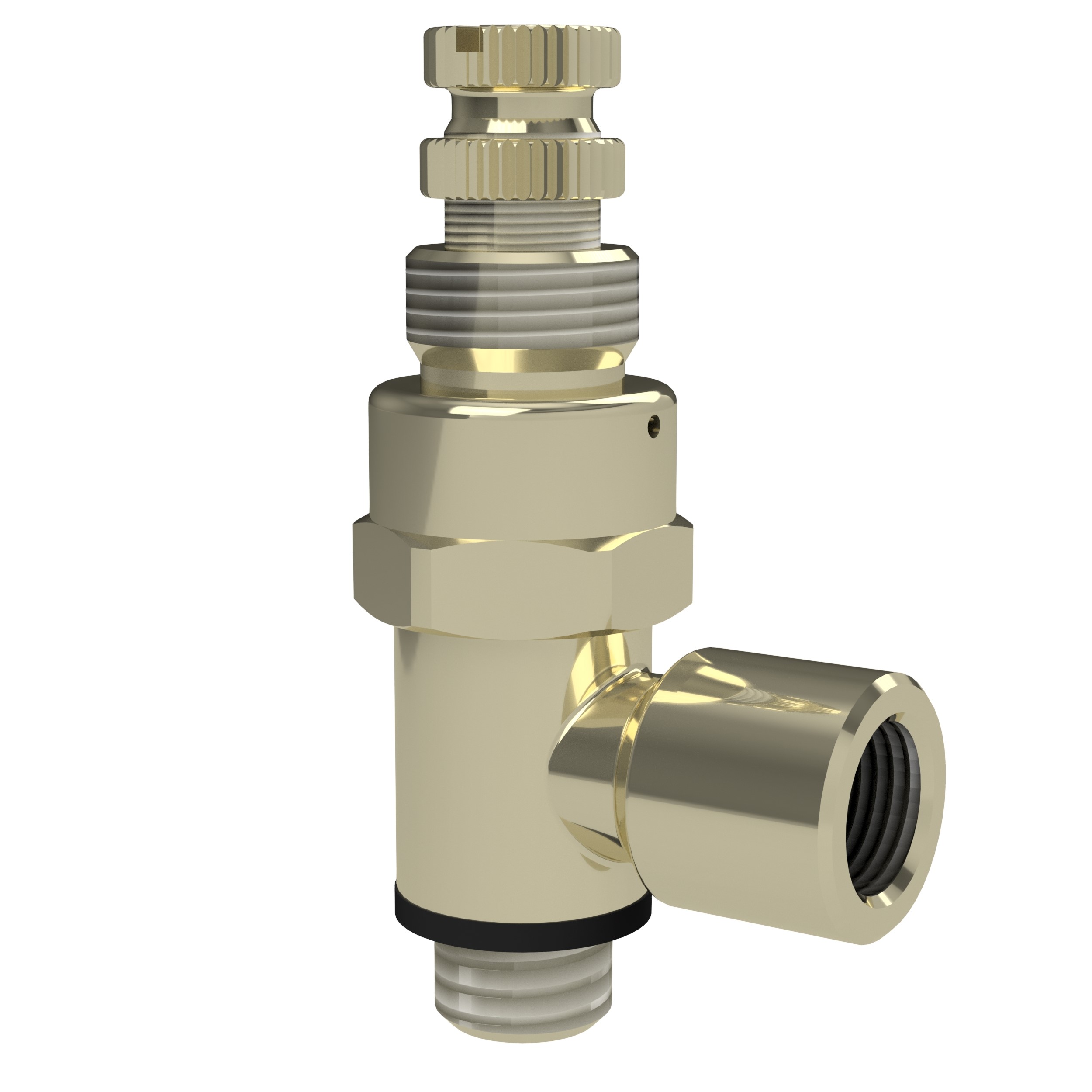

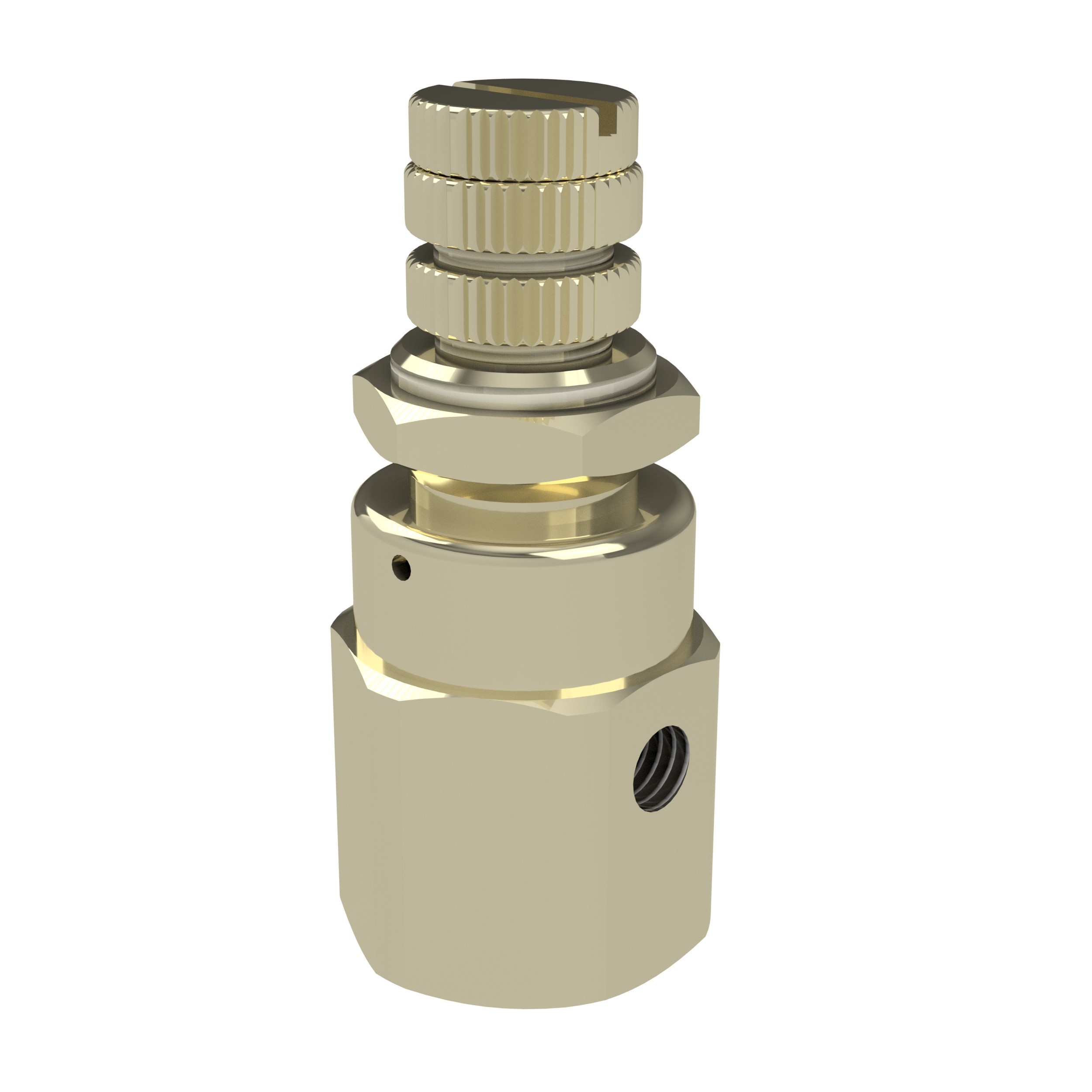

Mini pressure regulators

Customers can choose between mini-pressure regulators as stand-alone versions with M5 connections (panel mounting) and mini-pressure regulators for integration into a block. All our mini pressure regulators are piston regulators and therefore guarantee the smallest designs with high performance.

The mini pressure regulators are available as standard for the pressure range 0.2 - 2 bar and for 1 - 8 bar. We offer these pressure regulators for neutral gases as well as for neutral liquids such as water.



Minidruckregler Minidruckregler Minidruckregler



Advantages of miniature products

  • Minimum space requirement
  • Minimal compressed air consumption
  • Long service life
  • Easy to integrate
  • Optimum price-performance ratio



Miniature products from SFS-Fluid Systeme GmbH

We build these compressed air devices from plastic, aluminum, brass and stainless steel, depending on the application and quantity. NBR, FKM or PU are mainly used for the seals.
